VMC – NX 3222 (Standard Setup) / JYOTI CNC LTD / 2012

Advanced CNC Engineering for High-Precision Machining

The VMC – NX 3222 from JYOTI CNC LTD is built to handle a wide range of precision milling operations with outstanding repeatability. Designed for industrial efficiency, this Vertical Machining Center delivers high-speed cutting, accurate dimension control, and excellent surface finishes across complex components and tight-tolerance parts.

With a rigid machine structure, smooth axis movement, and optimized spindle performance, it ensures reduced vibration and improved tool life — making it a reliable solution for medium and large-scale production environments.

Features of Product

Stable cutting under heavy loads
Smooth and accurate milling
Precision components
Batch production & job-based machining
Continuous shop-floor operation
portfolio-single-col-img2

Working Process

01
Step

Inquiry & Drawing Review

- Customer shares drawings (STEP, DWG, PDF)

- Technical feasibility check based on size, tolerance & material
02
Step

Quotation & Confirmation

- Price estimation based on machining hours & complexity

- Final confirmation via PO/Email from customer
03
Step

Material Inward & Verification

- Customer sends material with test certificate (if applicable)

- Material inspection for size & damage

- Job entry & material acknowledgment
04
Step

Process Planning & Programming

- Fixture planning and job setting method

- Tool selection & CNC program preparation
05
Step

Machining Operations

- Roughing, semi-finishing & finishing cycles

- Multi-face or angular machining (if required)

- Special attachment usage (90° head) when needed
06
Step

Quality Inspection

- Dimensional accuracy checked as per drawing

- Surface finish verification

- Final QC approval before dispatch
07
Step

Packaging & Delivery

- Proper packing to avoid transit damage

- Pickup or delivery as mutually agreed

Our Commitment

We focus on accuracy, consistency, and timely delivery.

With decades of machining experience and advanced machines, we ensure high-quality output for all industrial components.

Product Information

Ideal for milling, drilling, tapping, and profile machining on a wide range of engineering materials.


Job Capacity

3200×2200×800 Parameters for Std Tool Length (200mm)

Load Capacity

10 TON

Feature

Accuracy machining with stable structure

Applications

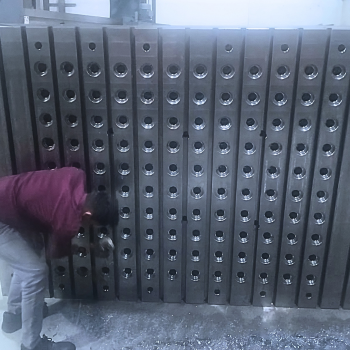

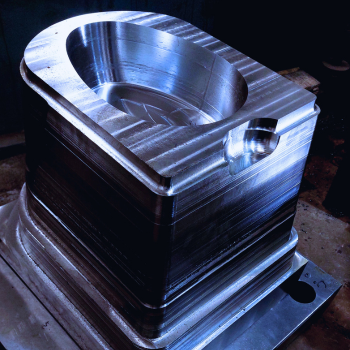

Capable of high-precision machining of large and heavy base plates, welded fabrication bodies, structural assemblies, aluminium patterns, and oversized industrial components in steel, cast iron, aluminium, and allied materials.
