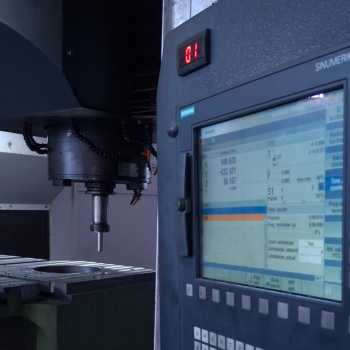

VMC – NX 3222 (Brand New with 350 mm Riser and 90° Auto head)/ JYOTI CNC LTD / 2025

Latest Innovation in CNC Machining

The VMC – NX 3222 is a next-generation Vertical Machining Center engineered to deliver breakthrough performance, higher stability, and enhanced machining flexibility. Equipped with a 350 mm Riser and 90° Auto Head Attachment, this upgraded machine allows machining of larger components and multi-angle operations with utmost precision — eliminating multiple setups.

This new CNC system is designed for high-accuracy production, reduced cycle time, and excellent repeatability, making it ideal for industries that demand world-class surface finish and dimensional accuracy.

Features of Product

Better Component Height Capacity
Multi-Angle Machining
Superior Dynamic Stability
High-speed spindle
Reduce operator dependency and setup time
Future automation and smart upgrades
portfolio-single-col-img2

Working Process

01
Step

Inquiry & Drawing Review

- Customer shares drawings (STEP, DWG, PDF)

- Technical feasibility check based on size, tolerance & material
02
Step

Quotation & Confirmation

- Price estimation based on machining hours & complexity

- Final confirmation via PO/Email from customer
03
Step

Material Inward & Verification

- Customer sends material with test certificate (if applicable)

- Material inspection for size & damage

- Job entry & material acknowledgment
04
Step

Process Planning & Programming

- Fixture planning and job setting method

- Tool selection & CNC program preparation
05
Step

Machining Operations

- Roughing, semi-finishing & finishing cycles

- Multi-face or angular machining (if required)

- Special attachment usage (90° head) when needed
06
Step

Quality Inspection

- Dimensional accuracy checked as per drawing

- Surface finish verification

- Final QC approval before dispatch
07
Step

Packaging & Delivery

- Proper packing to avoid transit damage

- Pickup or delivery as mutually agreed

Our Commitment

We focus on accuracy, consistency, and timely delivery.

With decades of machining experience and advanced machines, we ensure high-quality output for all industrial components.

Project Information

Ideal for milling, drilling, tapping, and profile machining on a wide range of engineering materials.


Job Capacity

3200×2200×1150 Parameters for Std Tool Length(200mm)

Load Capacity

10 TON

Features

• 350 mm riser for increased job height capacity beyond standard machines
• 90° auto head with 5° indexing and spindle speed up to 3000 RPM
• Glass scales for high precision, accuracy, and repeatability in machining

Applications

Capable of high-precision machining of large and heavy base plates, welded fabrication bodies, structural assemblies, aluminium patterns, and oversized industrial components in steel, cast iron, aluminium, and allied materials.

Special Attachments

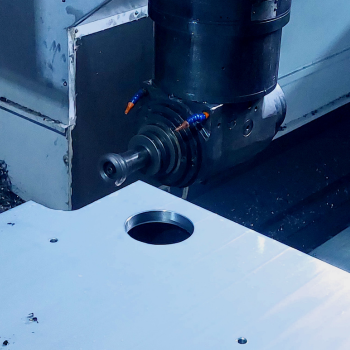

Horizontal 90° Auto Head Attachment

Minimum 5° fixed angular indexing for complex profile machining

Benefits

Enhanced height machining, 5 face capability, improved productivity
